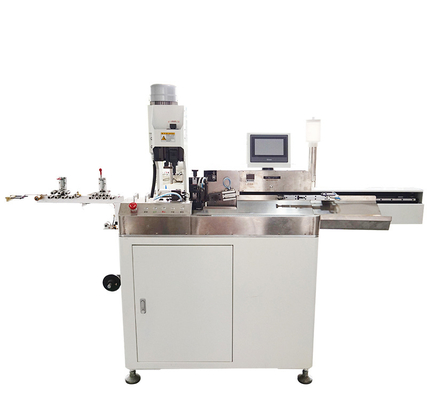

2018 hot sale full automatic wear waterproof plug terminal crimping machine
Features:
1..Exquisite and compact design, ingenious conception, less floor space
2.Computer touch screen in Chinese/English, PLC operation, easily understood menu
3.Quick to change the working procedure or materials
4.High-efficient step drive and servo drive, high accuracy and quick speed
5.Super silent electronic clutch terminal machine
6.Convenient maintenance, high cost performance
7.One person can operate many machines, which sharply improves the performance of enterprises
Specifications:
| Product name | Full automatic terminal pressure machine (bulk terminal type) |
| Model | WL-SD |
| Function | Wire cutting with specified size, one end crimping, one end full-stripping, one end semi-stripping; it is able to set the crimping position, stripping length and cutting depth automatically. |
| Work ability | 4500pcs/H when it is the shortest wire cutting |
| Suitable wire | AWG1007#16~#30 |
| Machining length | 38mm~9999mm |
| Stripping length | One side:10mm two sides:0mm~30mm |
| Cutting Accuracy | ±0.2mm+(setting lengthx0.002mm) |
| Crimping capacity | 1.8T (optional 2.0T, 2.5T) |
| Control method | BEIER PLC, true color touch screen |
| Detection device | Whether there is any abnomal situation such as lack of wire,abnormal crimping, wire overload and so on. |
| Compressed air | 0.5mpa (5kgf/cm) (Please use the clean and dry gas) |
| Mold application | OTP Straight, Horizontal mold |
| Power | AC220V/200V |
| Dimension | 800x800x1400mm (Excluding the projected object) |
| Weight | 220KG |
Double Ends Cable Stripping Cutting Twisting Terminal Crimping Machine:
Standard 2 ton ( 2.0 T terminal machine casting ultra-quiet clutch ) terminal crimping machine
Single End (1 head) Cable Stripping Cutting Twisting Terminal Crimping Machine
Length of cutting line more than 800mm need to assemble conveyor belt
Wire cut, peeling at both ends, single end pressing, single end wearing waterproof bolt
Application terminals:
Other related terminal crimping machines, pls click for more informations:
| 2.0 Ton Terminal Crimping Machine | Pre-insulated terminal crimping machine |
| Hydraulic Terminal Crimping machine DZS-30T | pneumatic terminal crimping machine |
| terminal stripping and crimping machine | wire and cable two-for-one twisting crimping machine with function of dipping tin machine |
Shipping & Payment & Packing for the Full automatic wear waterproof plug terminal machine
Fully auto single head and single end waterproof terminal crimping machine
Our service
1, One year guarantee for the whole machine except blade and belt.
2, 24 hours technical support by email.
3, User-friendly English software and user manual.
---Purchase guidance
If you are not sure which model is the best option within your budget, please send us
the parameter or wire, it’s our pleasure to make a recommendation and comparison models
to you.
---After Sale Service
Don’t worry, we are here to help.CROWN provides lifetime after sale support to our customers
including operation guidance, parts replacement, maintenance support. Just feel free to contact us!
--- Technical Support
In some cases, professional technical support will be needed, such as parameter meter set-up
for difficult-to process wires.CROWN engineers are here for your assistance.
---Others
Compensation: If any unqualified product is found, we’ll pay the compensation or send newly qualified products to customers.
Maintenance & Repair: In case of any maintenance or repair need, we’ll help to find out the problem and offer relative guidance.
If you have any any questions, pls free to contact us via TM or send us inquiry below for more details.
Or just leave your contact informations,we will contact you at our earliest convenience.
