Features

Specifications

Condition: New

Type: Slitting Rewinder, Low Pressure Pe Film Blowing Machine

Computerized: Yes

Voltage: 220v

Power: 3.5kw

Dimension(L*W*H): 2200x2100x1200

Weight: 2300kg

Warranty: 1 Year

After-sales Service Provided: Engineers Available To Service Machinery Overseas

Certification: CE ISO9001

Material: HDPE LDPE LLDPE PAPER

Name: Slitting & Rewinding Machine

Key Words: Slitting And Rewinding

Use: Slitting Film Paper

Basic Infomation

Certification: CE ISO9001

Payment & Shipping Terms

Packaging Details: plastic stretch film packaging or wooden pallet Computer Automatic jumbo roll Paper aluminum foil film jumbo paper rolls rewinder slitter rewinding machine slitter price

Supply Ability: 500 Set/Sets per Year

Product Description

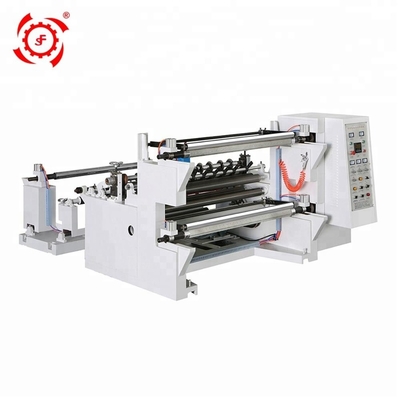

Computer Automatic jumbo roll Paper aluminum foil film jumbo paper rolls rewinder slitter rewinding machine slitter price

Characteristics:

GSFQ-C model high speed slitting machine is used for slitting and rewinding various large rolling material in thickness 20g/m²-300g/m², such as paper, paper sticker, film, pvc, opp, bopp, PET etc.

1. PLC control, frequency converter driving system.
2. 3¨ and 6¨ air shaftless unwinding system, paper core positioning by laser.
3. Automatic error position control with sensor.
4. Automatic tension control.
5. Razor blade cutting and groove roller cutting(also can be circular blade slit as optional device)
6. Configure the main and the auxiliary touch roller.
7. Friction air shaft rewinding 3¨ and 6¨
8. Rewinding roll discharge collecting device.

Model	GSFQ-1100C	GSFQ-1300C	GSFQ-1600C
Max. width of unwinding	1100mm	1300mm	1600mm
Max. diameter of unwinding	Φ800mm	Φ800mm	Φ800mm
Min.width of slitting	30mm	30mm	30mm
Max. diameter of rewinding	Φ600mm	Φ600mm	Φ600mm
Max. speed	450m/min	450m/min	450m/min
Total power	7kw	7.5kw	9kw
Power supply	380V/50HZ	380V/50HZ	380V/50HZ
Weight(approx.)	2300kg	2500kg	2800kg

Detailed Images

Packing & Delivery

Company profile

Certificate

After Service

We guarantee fix for the equipment for one Year and only change spare parts which belong to the bad quality of equipment in one year(except man-made causation) Debugging and Installation:Seller delegates engineers to RECIPIENT to make a supervision of correct installation, commissioning and provide training by asking of Buyer. Buyer will pay for round trip tickets, habitations, food for Seller's engineers,and USD100 per day for subsidy.

FAQ

1. Q: Are you a factory or trading company?
A: We are a factory

2. Q: What certificate do you have?
A: We have ISO9001, SGS, GB4455 and CE certificate.
3. Q: How dose your factory do regarding quality control?
A: We have a special QC department in charge of product's quality.
4. Q: How long is the warranty period?
A: All of our products have one year warranty.
5. Q: What's the main market of your company?
A: we have customers all over the world.
6. Q: What is your delivery time?
A: Normally, It needs about 30 working days. The exact time depends on production management.
7. Q: Can we visit your machine operation in your factory?
A: We have own plastic making company, you can see the machine operation.
8. Q: Where is your factory located? How can we visit there?
A: Our factory located in Jielutou Village,Shangwang Street,Ruian City,China
You can by air to Wenzhou Airport and by High-speed rain to Ruian Station.
